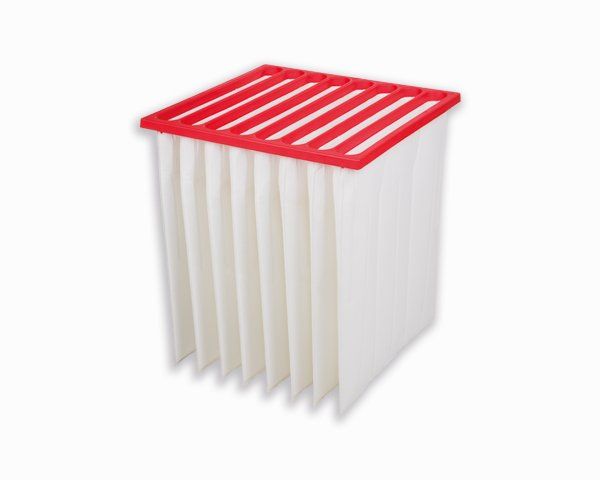

DriPak KX
Taschenfilter
Produktübersicht
- ISO 16890: ePM10, Coarse
- Vollständig veraschbar
- Hohe Staubaufnahmekapazität
- Bruchsichere, synthetisch-organische Fasern
- Glasfrei
- Silikonfrei
- Eingeschäumt in einen spritzgegossenen Polyurethan-Rahmen
- Leichtes und leckfreies Design
Highest Dust Holding Capacity with Optimized Pressure Drop Behaviour
Designed for high performance in demanding operating conditions, the DriPak KX rigid pocket filters can function as either prefilters or final filters, where clean air is a necessity. Designed for the use in applications where a high dust holding capacity is crucial, DriPak KX filters are ideal for automotive paint booths, healthcare facilities, commercial buildings, and a variety of industrial applications. Beside a high dust holding capacity, the DriPak KX shows a low pressure drop behavior. Full media utilization and long service life is thereby ensured.
DriPak KX filters are made of uncharged synthetic media with self-rigid properties. The use of any support frames attached to the pockets to prevent flexing and buckling during full inflation is not necessary. Formation of the pockets is reached through ultrasonic welding, which ensures leak-free pockets. Z-shaped pocket spacers guarantee optimized airflow.
Spezifikationen
ISO 16890 ePM10, Grob
Medientyp Synthetik
Dichtungsmaterial Neopren
Rahmenmaterial Polyurethan
Filtertiefe (mm) 635
Maximale Betriebstemperatur 70°C
empfohlener Enddruckverlust max. 450 Pa
empfohlener Luftvolumenstrom 75% - 125%
Feuchtebeständigkeit 100% relative humidity
